TOMAR's 20" TRT Series LED light bars feature advanced LED technology that delivers bright and highly visible warning signals. This LED light bar is equipped with multiple LED modules that can be programmed to flash in different patterns and combinations.
Depending on the configuration (see product options) TOMAR's 20" LED light bar is perfect for vehicles that needs warning lights for emergency situations but also illumination.
TOMAR DUAL-MODE OVERVIEW
TOMAR’s Dual-Mode Lighting Technology is like you, adaptable. When we say Dual-Mode, we mean a lamp which is designed to perform different tasks, depending on its environment. Every scene is different, and some emergencies such as wildfires, or off-road situations demand more usable scene light rather than warning lights.
TOMAR Dual-Mode capable LED lights give you just that. Warning lights that transform to scene lights. Now that’s a light which works as hard as you do!
See product configuration select dual-mode light bars.
PRODUCT CONFIGURATION

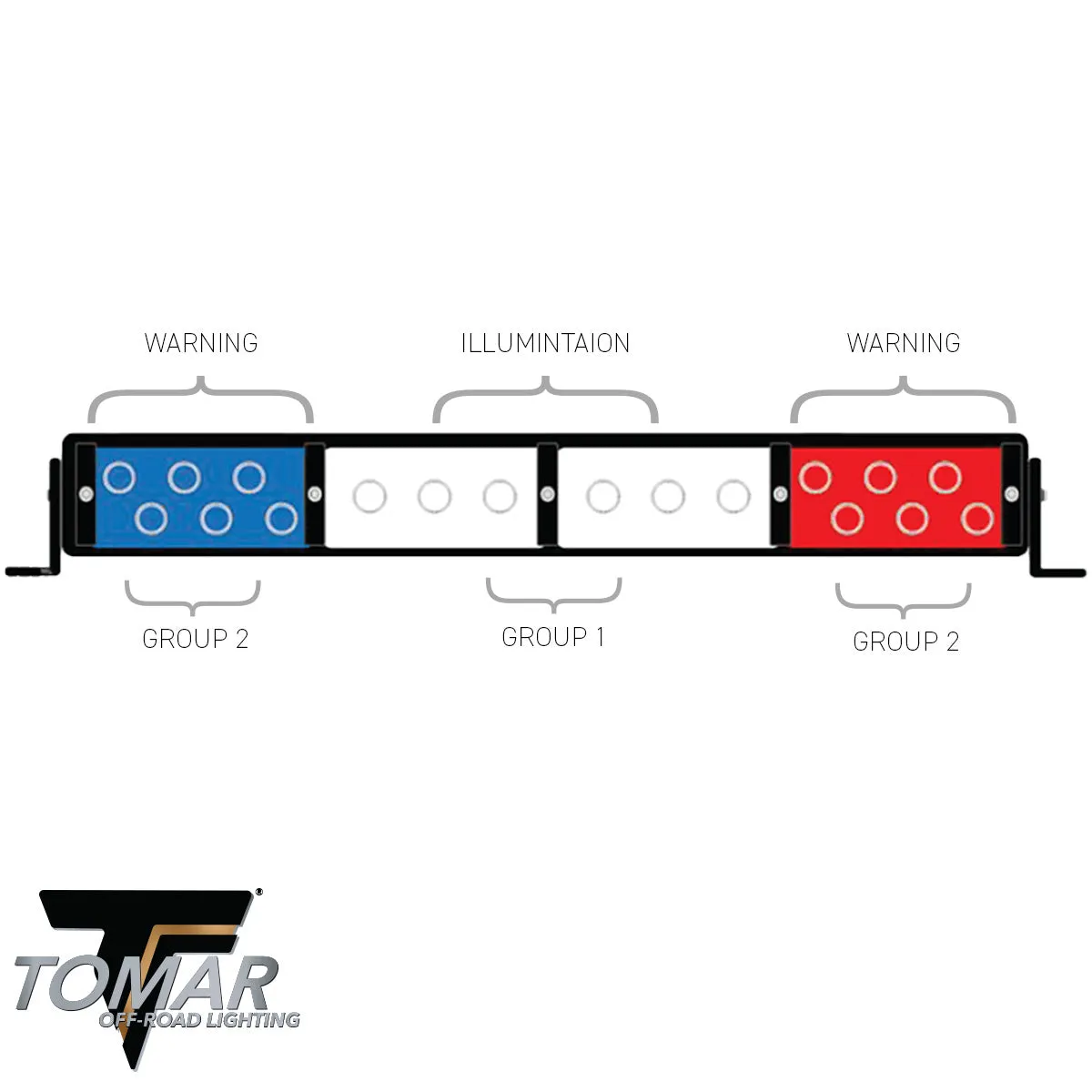

W1-1 Configuration
(Warning/Illumination 1 Pair Warning, 1 Pair Illumination)
-
Number of Warning Modules
2 (Red, Blue, Amber, Green, White) -
Number of Illumination Modules
2 illumination Only

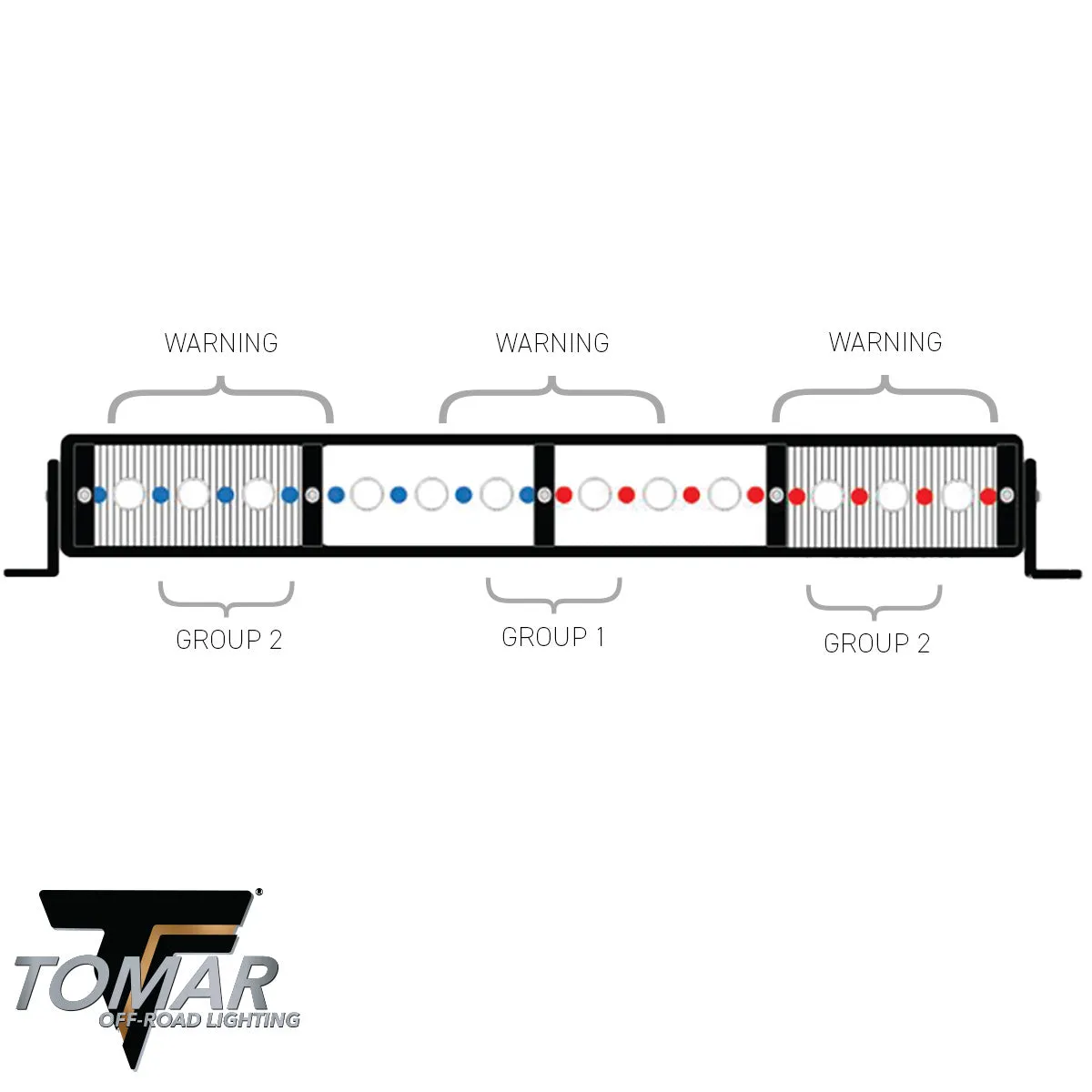

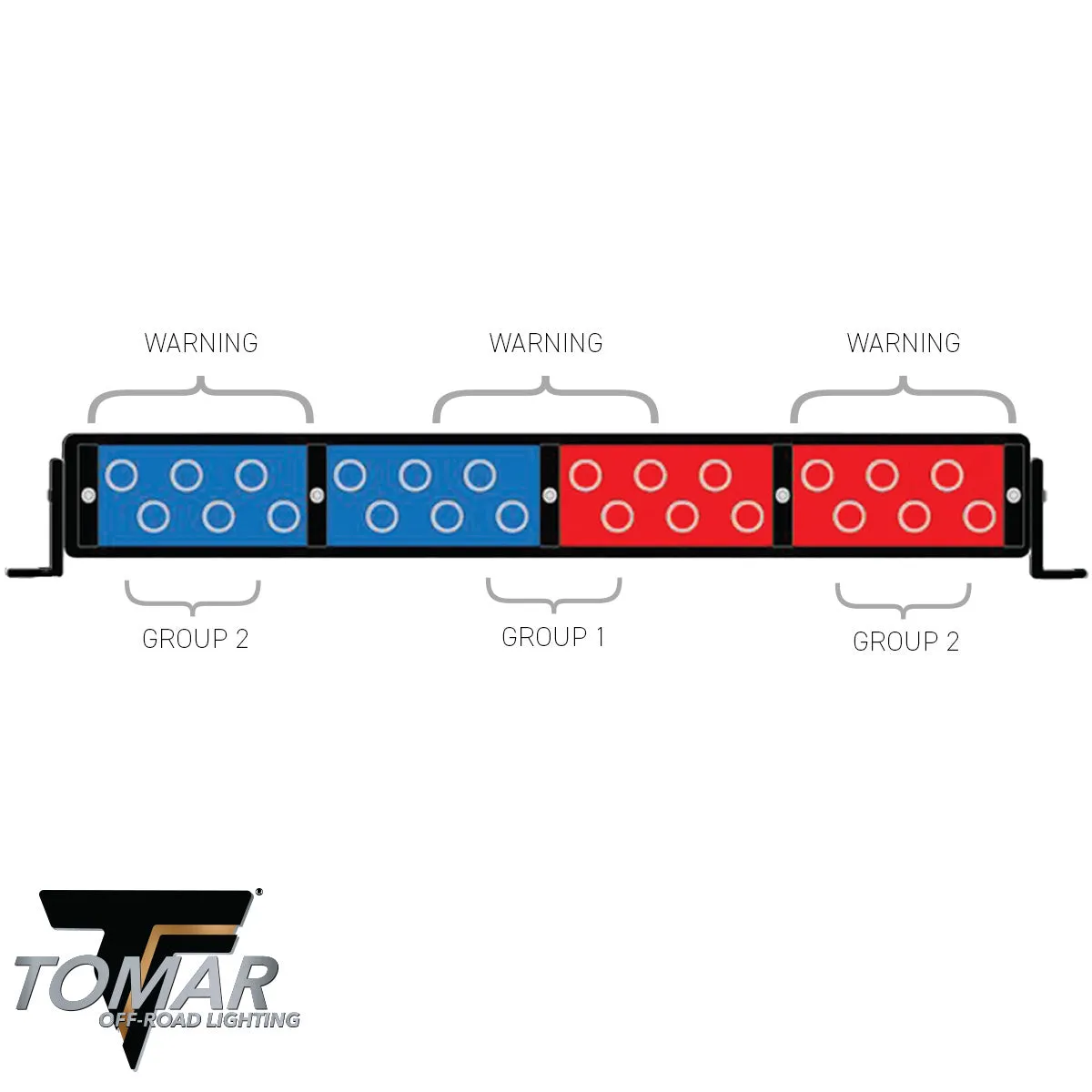

W2-1 Configuration
(4 Modules All Warning Modules)
-
Number of Warning Modules
4 (Red, Blue, Amber, Green, White) -
Number of Illumination Modules
Zero (this is a warning bar only)

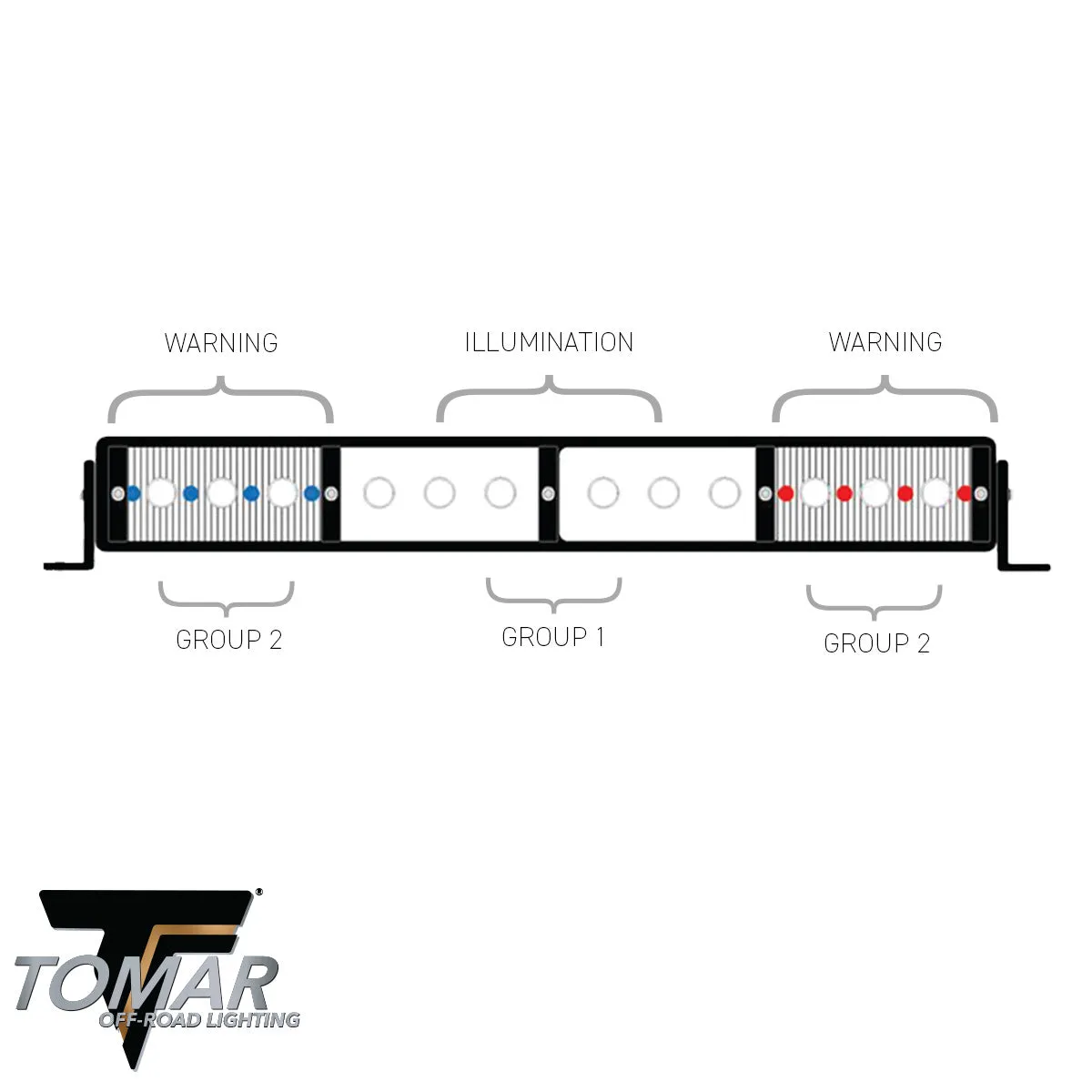

DW1-1 Configuration (Dual-Mode, 1 Pair Warning w/ White Override, 1 Pair Illumination only)
-
Number of DUAL-MODE Modules
2 Warning Light with w/ white illuminaiton override option -
Number of Illumination Modules
2 Modules illumination Only
DW2-1 Configuration (Dual-Mode, All Warning, All Modules w/ White Override)
-
Number of DUAL-MODE Modules
4 Warning Modules with w/ white illumination override option
KEY FEATURES
- TOMAR's' TRT Series 20" LED light bar is built to withstand the most demanding conditions with a rugged, shockproof, and waterproof design.
- Internally-relayed switching and low-current control wires means no need to add vehicle relays to switches.
- Provides high intensity warning lights for your tactical vehicle
- Easy installation and maintenance with modular components
- Easy installation: All TRT Series LED light bars come with a universal mounting kit, making them easy to install on any vehicle.
- Utilizes TOMAR's superior optical technology TOMAR's optics are designed and engineered to maximize light output efficiently.
- Dimming capability
- Operating temperature: -40°C to 60°C
- Heavy-duty 6063-T5 Aluminum Heatsink for maximum intensity over long periods
- Even in flashing warning mode, TRT meets current SAE, California Title 13, NFPA, and other guidelines on lighting safety.
- Designed to eliminate wind noise
- Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
SPECS
-

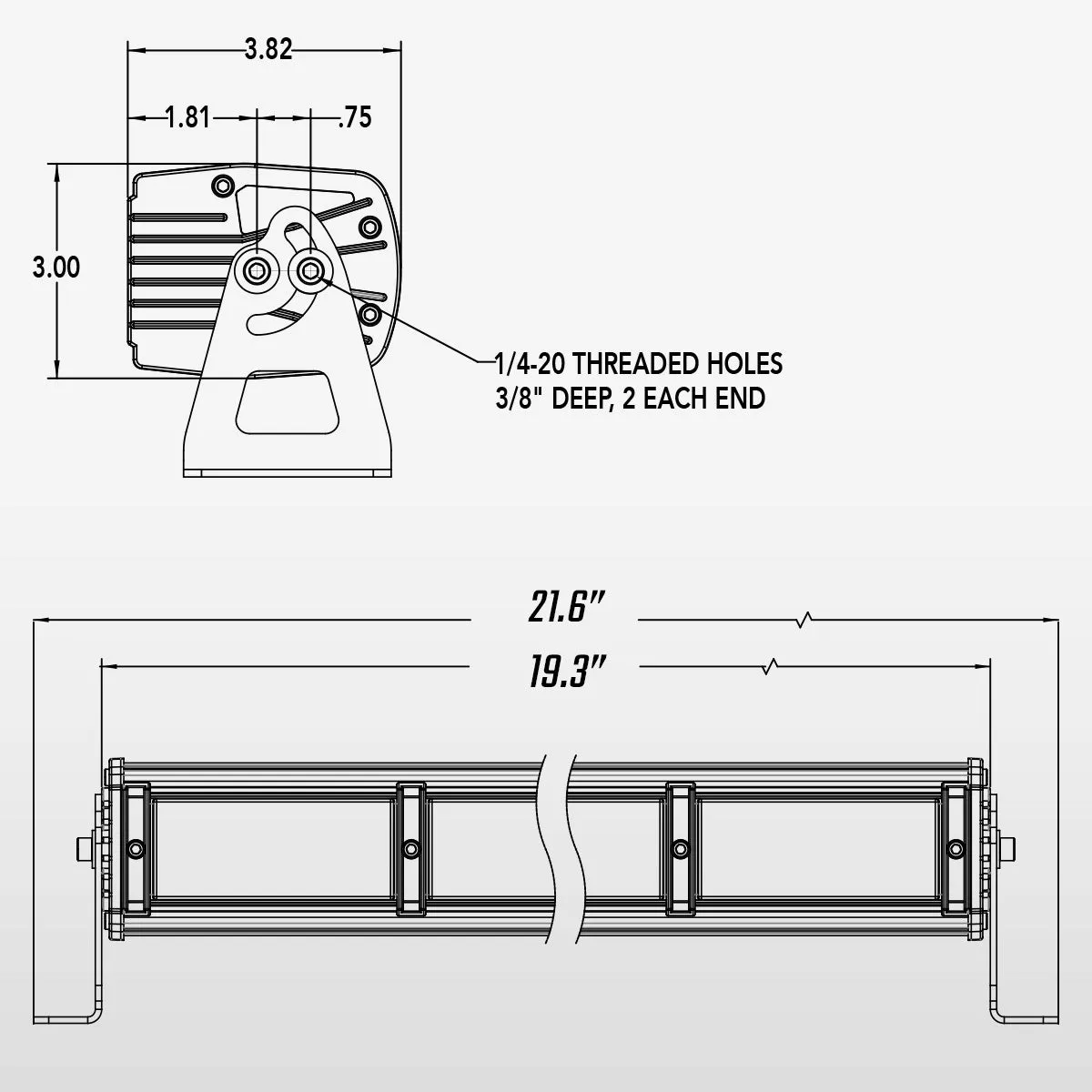

Bar Length: 20"
- Number of Modules: 4
- Waterproof - IP68 and IP69K rate, immersion tested up to 9 meters
Performance Through Engineering
Focused on those who protect us every day, TOMAR off-road LED light bars are like nothing you have seen before. We started with Cree XPL LEDs for maximum lumen output and reliability. The light from the LEDs is focused through our Clear Vision Optic (CVO) system which uses a hybrid total-internal-reflector (TIR) collimator over the LED, rather than a reflector behind the LED like other manufactures.
By doing this, TOMAR off-road bars are able to effectively project more of the LEDs lumens exactly where the light needs to go. This means dramatically increased performance when compared to equal amounts of lumens, and less glare from stray vertical light.
We seal the optics and electronics using our patented linear-vibration welding sealing process, protecting the components from dust and moisture, in one of four optical configurations: Spot, Flood, Composite or Flood/Spot.
